Step by Step to install TCPdump (Capture Packets) on Ubuntu 20.04 LTS

TCPdump is a free & open-source packet analyzer tool & command-line utility. It is used for capturing the packets & inspect the network traffic going to & from our system. It is basic used for troubleshooting network issues & security testing. We can capture Non-TCP traffic such as UDP, ARP or ICMP.

There are some steps to install TCPdump on system:

Step 1: Update the System.

apt-get update

Step 2: Install TCPdump on system.

apt-get install tcpdump

  • Check the TCPdump version.

tcpdump --version

  • Here is the command output.

Step 3: TCPdump syntax & Examples.

tcpdump [options] [expression]

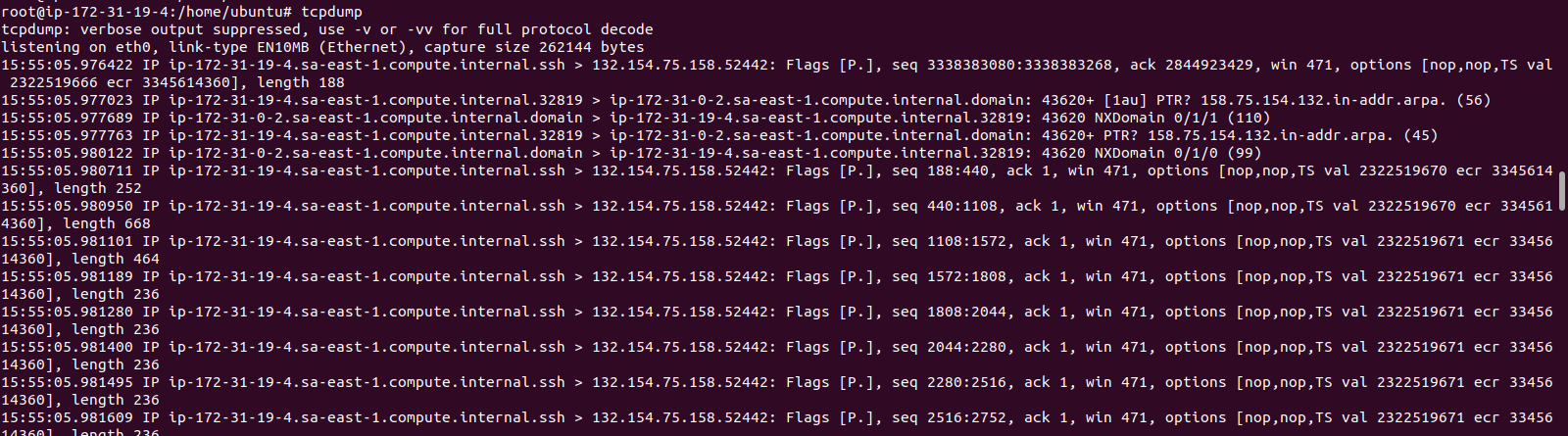

  • To capture all packets.

tcpdump

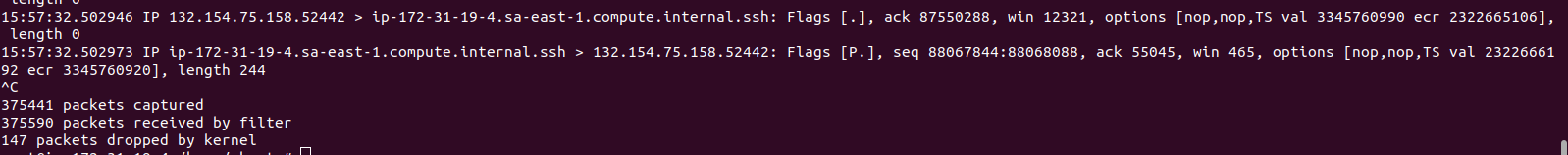

  • Here is the command output.

  • To capture packets from a specific interface.

tcpdump -i eth0

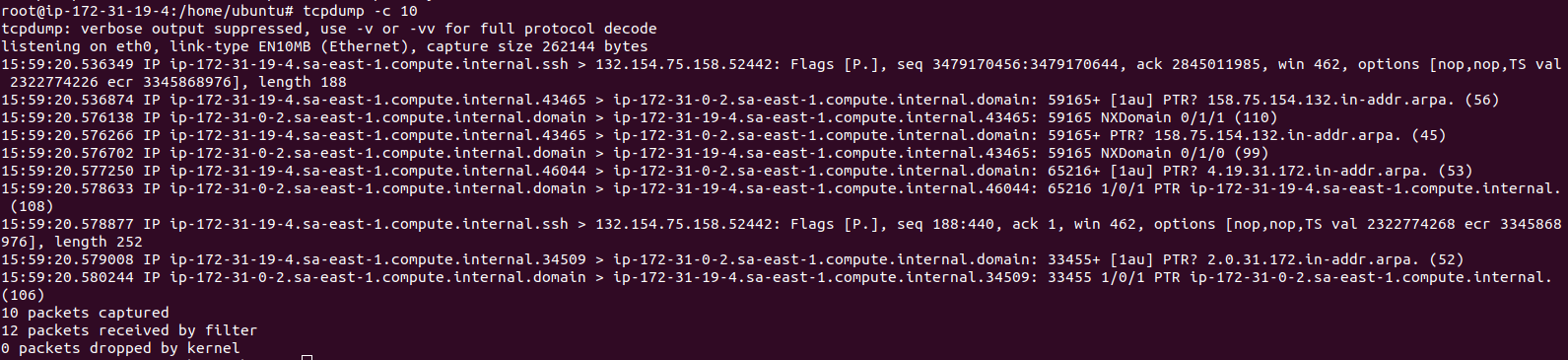

  • To capture only 10 packets.

tcpdump -c 10

  • Here is the command output.

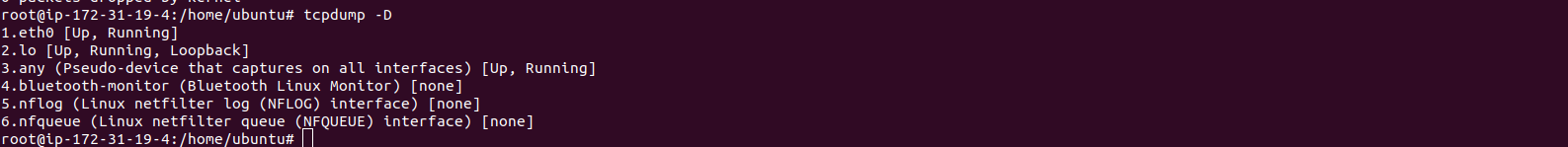

  • To list all the available interface.

tcpdump -D

  • Here is the command output.

  • To capture packets from any interface.

tcpdump -i any

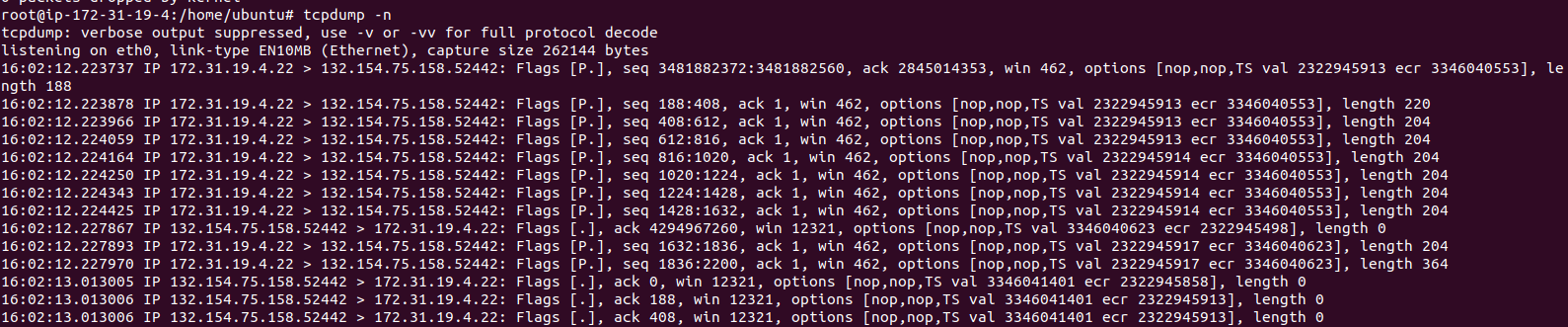

  • To use -n option to disable the translation.

tcpdump -n

  • Here is the command output.

  • To store capture network interface packets into a file.

tcpdump -n -i any > file.out

  • To display the capture packets while saving to a file .

tcpdump -n -l | tee file.out

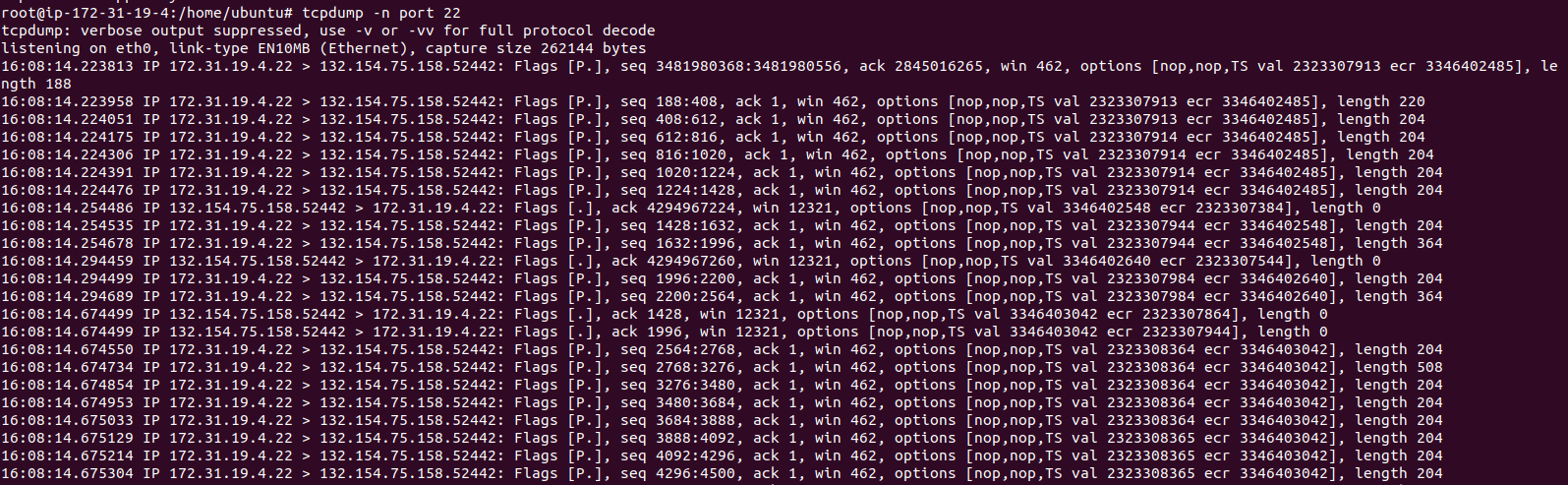

  • To capture packect from a specific port number.

tcpdump -n port 22

  • Here is the command output.

  • To capture packets from a source ip.

tcpdump -n src host ip-address

  • To capture the traffic coming from any source to port 80.

tcpdump -n dst port 80

  • To capture all HTTP traffic coming from a source IP address.

tcpdump -n src ip-address and tcp port 80

  • To capture traffic in a range of ports.

tcpdump -n portrange 110-150

  • To capture packets only packets related to 10.10.0.0/16.

tcpdump -n net 10.10

  • To show each packet in ASCII.

tcpdump -n -A

  • To show each packets in HEX and ASCII.

tcpdump -n -X
